JPR-ST5020 JMP Marine Seawater Strainer

: Unavailable

: Seawater Strainers

Regular price $828.72

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

files/hatton-marine-payemt-forms_a9f81f4f-84df-44fb-b4e8-a904e1b672eb.png

  Includes:

  • Complete Seawater Strainer #JPR-ST5020
    QTY: 1


PRODUCT DESCRIPTION

SPECIFICATION JPR-ST5020
PORT SIZE: 2" (PIPE) - NPT
TOP CASTING Bronze
BOTTOM CASTING Bronze
BASKET Stainless
BASKET REPLACEMENT P/N FIL000402 (2mm)
ANODE REPLACEMENT P/N ZEN000101
SEAL O-Ring
SIZE (A X B X C, mm) 210 x 435 x 235
CYLINDER (Dia X H, mm) 180 x 290
WEIGHT (Approx.) 26.25 LBS / 12.0 kgs

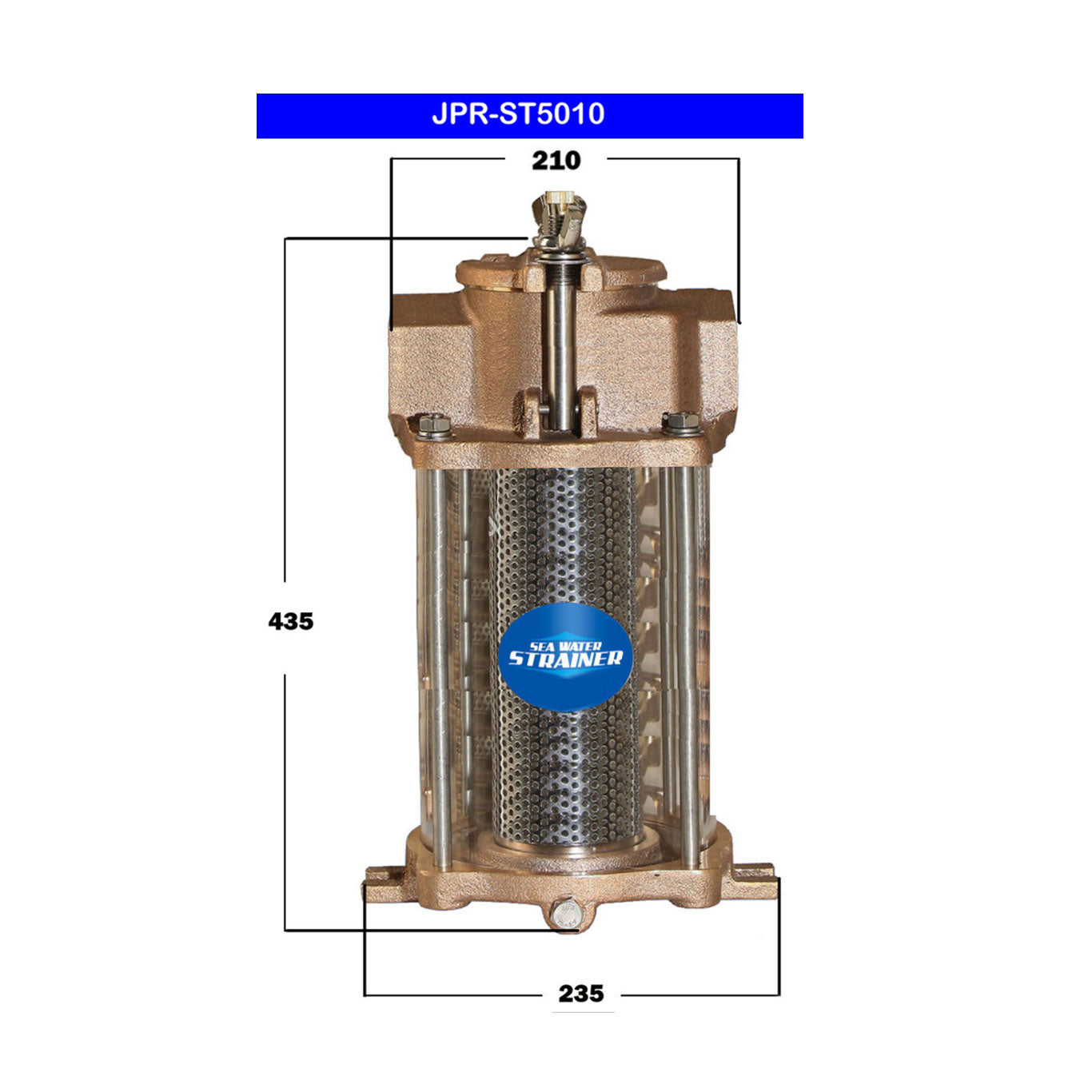

PLEASE NOTE A,B,C SIZE STANDS FOR:
(A) Top Width / Dia = 210mm
(B) Height = 435mm
(C) Bottom Width / Dia = 235mm


PERFORMANCE TABLE - FLOW
 CHART

*Pumps with 820X, 830X Impellers

Bar 500rpm 1000rpm 1800rpm 2000rpm
0 105 L/Min 213 L/Min 394 L/Min 448 L/Min
1 89 L/Min 186 L/Min 351 L/Min 406 L/Min
2 65 L/Min 146 L/Min 310 L/Min 333 L/Min
3 -- 77 L/Min 220 L/Min 241 L/Min
Max -- 3.6 bar 4.2 bar --


PERFORMANCE TABLE - FLOW
 CHART

*Pumps with 8400 Impellers

Bar 500rpm 1000rpm 1800rpm 2000rpm
0 125 L/Min 236 L/Min 448 L/Min 500 L/Min
1 89 L/Min 176 L/Min 382 L/Min 420 L/Min
2 -- 27 L/Min 220 L/Min 241 L/Min
3 -- -- -- --
Max -- -- -- --


FEATURES

  • Robust Bronze Casting
  • Robust Stainless with Chrome Plated Filter Baskets
  • Easy Installation
  • Easy Maintenance and Cleaning
  • Protects Your Pumps and Engines
  • Transparent and Strong Cylinder
  • O-Rings Provide Better Sealing under High-Pressure Applications
  • Zinc Bar
  • Wingnut
  • Center Rods
  • Air Cap
