PLEASE NOTE:
Major Kit #JSK0138 is fully compatible with OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest-lasting performance product for the customer.

Replacement / Compatible to OEM Major Kit p/n(s):

• Sherwood Major Kit p/n - 25148

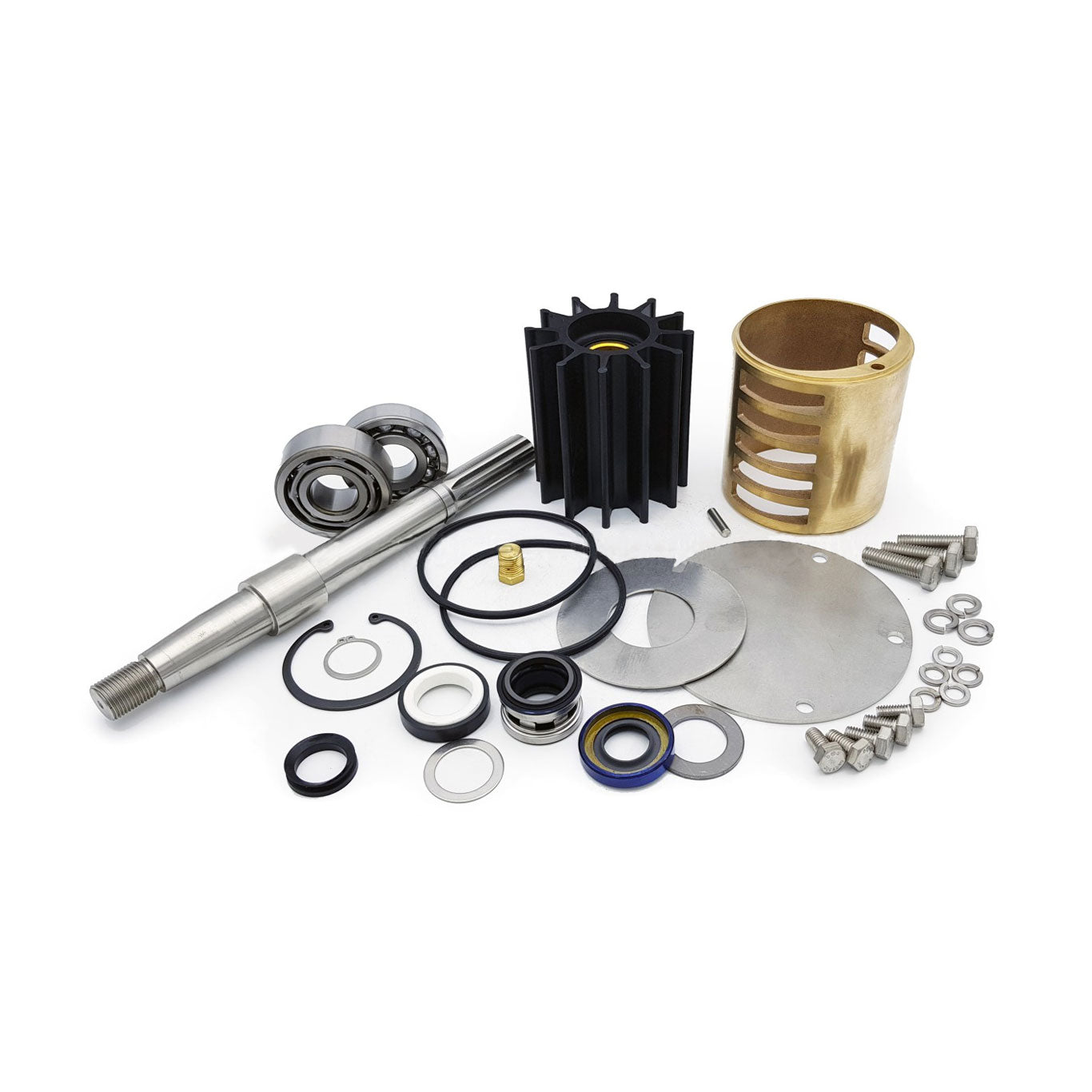

Major Service Kit #JSK0138 Includes:

8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET003201 (CAM SET) - QTY:1
MCSSET0027 (MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BER0010 (BEARING) - QTY:1
BER0064 (BEARING) - QTY:1
BOL0006 (BOLTS, END COVER) - QTY:5
BOL0036 (SPRING WASHER) - QTY:5
BOL0038 (SPRING WASHER) - QTY:3
BOL0194 (HEX BOLT, PUMP BODY) - QTY:3
NIP0016 (DRAIN PLUG) - QTY:1
ORG0054 (V-RING) - QTY:1
PIN0011 (PIN) - QTY:1
RET0042 (OIL SEAL, RETAINER) - QTY:1
SHA0146 (SHAFT) - QTY:1
SNP0008 (SNAP RING) - QTY:1
SNP0013 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1
SPC0035 (SPACER) - QTY:1

JSK0138 Approx weight: 12.0 LBS / 5.50 KG
