PLEASE NOTE:
Minor Kit #JSM0138 is fully compatible with OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest-lasting performance product for the customer.

Replacement / Compatible to OEM Minor Kit p/n(s):

• Sherwood Minor Kit p/n - 25146

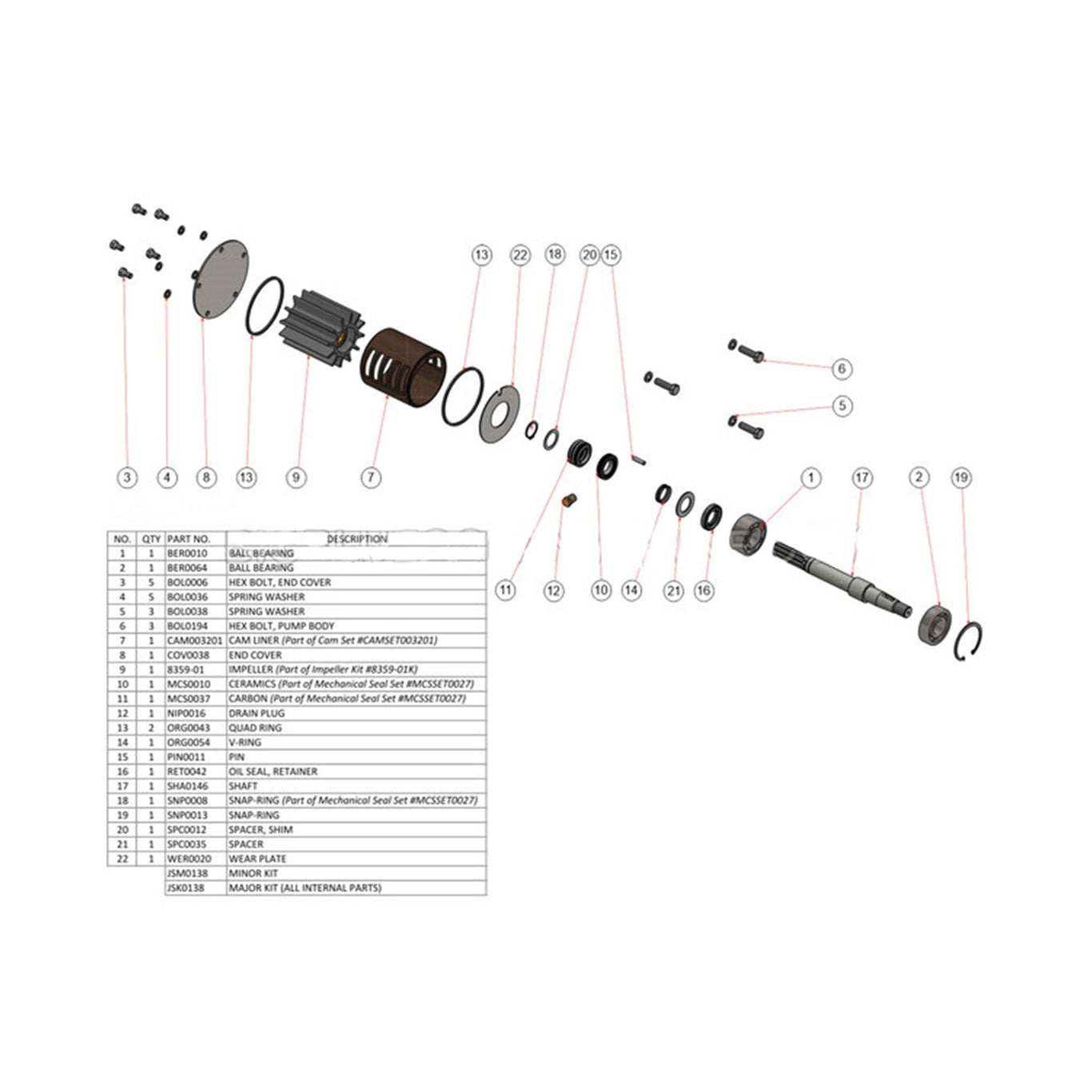

Minor Service Kit #JSM0138 Includes:

8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET003201 (CAM SET) - QTY:1
MCSSET0027 (MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BOL0006 (HEX BOLT, END COVER) - QTY:5
BOL0036 (SPRING WASHER, END COVER) - QTY:5
SNP0008 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1

JSM0138 Approx weight: 7.0 LBS / 3.20 KG

Services JMP Marine Caterpillar Replacement Engine Cooling Pump & OEM . . .

JMP Marine Engine Cooling Pump: #JPR-CT1200R (*Complete pump assembly not yet available)
Replaces Caterpillar Pump p/n: 3596661
Replaces Sherwood Pump p/n: G2904X
Engine Model(s): C12
All Parts Internally Compatible to Genuine: YES
