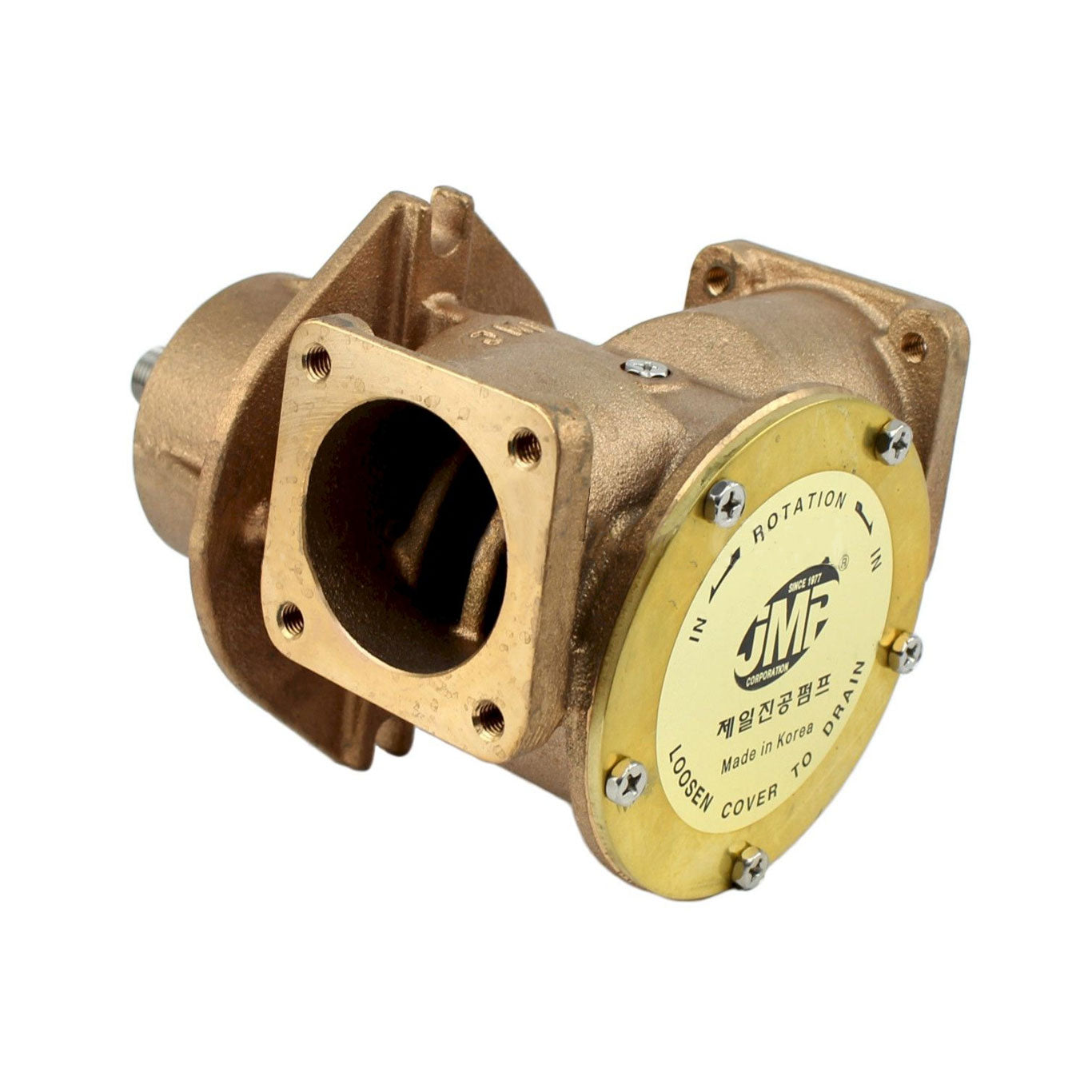

JPR-SC50IF JMP Marine Scania Replacement Engine Cooling Seawater Pump

: Unavailable

: Engine Cooling Pumps

Regular price $1,326.78

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

files/hatton-marine-payemt-forms_a9f81f4f-84df-44fb-b4e8-a904e1b672eb.png

Includes:

  • JMP Scania Replacement Engine Cooling Pump #JPR-SC50IF
    QTY: 1

Product Information:

SPECIFICATION JPR-SC50IF
Port Size 2" Flange
Shaft Drive Type Tapered Shaft Drive
Uses JMP Impeller p/n
8301-01 (search 8301-01K)
Pump Size (LxWxH,mm) 220 x 152 x 150
Pump Weight (approx) 18.0 lbs (8.18 kgs)
Replaces Genuine Scania Seawater Pump p/n Scania 1785016, 1785018
Engine Model(s):
DI09, DI12, DI13, DI16 Series
Genuine Johnson Pump p/n
Johnson 10-24308-01 (F9B-9), 10-24308-02 (F9B-905)
Parts Internally Compatible to Genuine NO (Internal Changes made for better performance & Reliability)
Changes Made to Pump Cover, Cam, Wear Plate, O-Ring for Cover, Shaft, Oil Seal
Major Service Kit (All Internal Parts)
*Sold Separately
JSK0028 (For JPR-SC50IF Only)
Minor Service Kit
*Sold Separately
JSM0033 (For JPR-SC50IF Only)



Features:

  • Universal Type (One for All Models)
  • Strong Bronze Body (Heavy Duty Marine Grade Casting)
  • High Performance and Long Life Flexible Impellers
  • Marine Grade Shaft (3X Series Non-Magnetic)
  • Screw with Hexa Head / Driver
  • O-Ring End Cover Packing
  • High Volume Flow Capacity
  • Fast Flow Rate
  • Forged Cam
