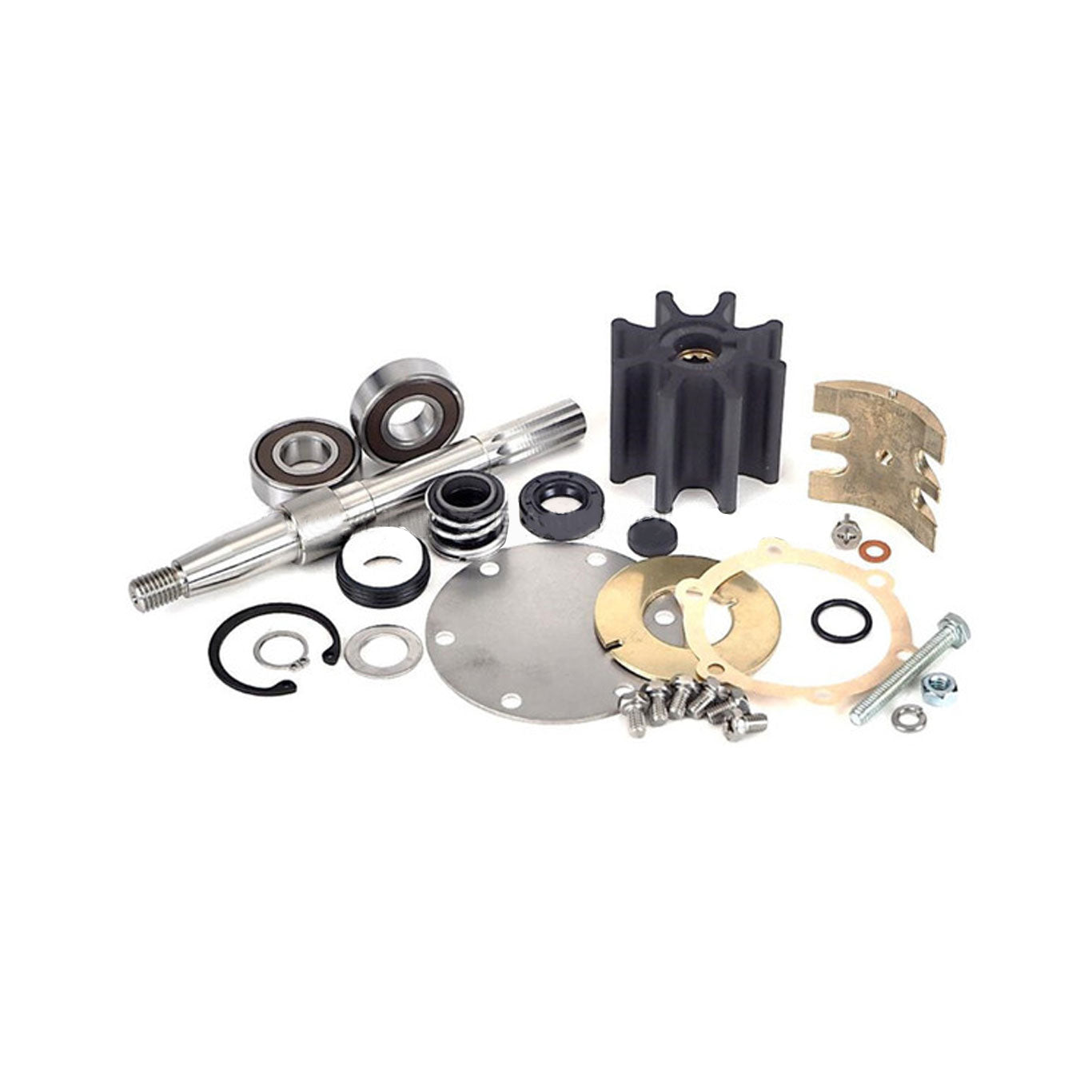

Major Service Kit for JMP Marine Volvo Penta Engine Cooling Raw Water / Seawater Pump JPR-VP0050D, Volvo Penta Pump 3838288, Johnson 10-24580-01

PLEASE NOTE:
Major Kit #JSK0099 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest-lasting performance product for the customer.

Major Service Kit #JSK0099 Includes (All Internal Parts):

7400-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0062 (GASKET, END COVER) - QTY:1
COV0046 (END COVER PLATE) - QTY:1
BOL0080 (HEX SCREWS, END COVER) - QTY:6
CAMSET000301 (CAM SET) - QTY:1
MCSSET0001 (MECHANICAL SEAL SET) - QTY:1
SNP0006 (SNAP-RING, MECH SEAL) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0001 (WEAR PLATE) - QTY:1
BER0045 (BEARING) - QTY:2
BOL0035 (SPRING WASHER, BEARING HOUSING) - QTY:1
BOL0151 (HEX BOLT, BEARING HOUSING) - QTY:1
BOL0152 (NUT, BEARING HOUSING) - QTY:1
KEY0028 (KEY, GEAR) - QTY:1
ORG0044 (O-RING) - QTY:1
RET0038 (OIL SEAL, RETAINER) - QTY:1
SHA0104 (SHAFT) - QTY:1
SNP0009 (SNAP-RING, LARGE) - QTY:1

JSK0099 Approx Total Lbs: 3.00 LBS / 1.40 KG

Services JMP Marine Volvo Penta Replacement Engine Cooling Pump & OEM / Genuine . . .

JMP Marine Engine Cooling Pump: #JPR-VP0050D
#JPR-VP0050D Replaces Volvo Penta Pump p/n: 3838288
#JPR-VP0050D Replaces Johnson Pump p/n: 10-24580-01
#JPR-VP0050D good for D5/D7 Series Engine Models: D5A-A T/TA, D7A-A T/TA, D7C-A TA, D7A-B TA, D7C-B TA
